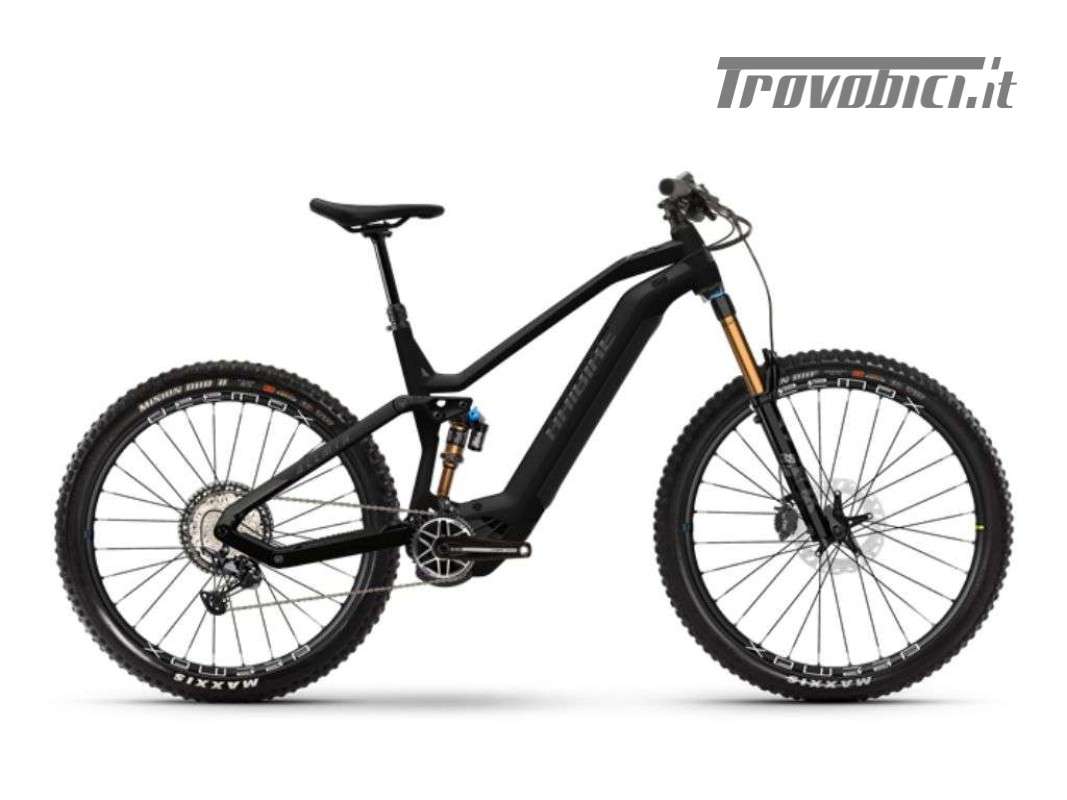

Haibike Allmtn 10 29/27,5 160 Mm | Yamaha Pwx3 2023 | Batteria 720 a Teramo NUOVA

SPECIFICAZIONI
ENGINE
Yamaha, PW-X3, 250 W, 85 Nm

DISPLAY
Yamaha, Interface - X

BATTERY
InTube, 720 Wh

FRAME FAMILY
Haibike, AllMtn PW-X3, Aluminium

FORK
FOX, 38 Factory Kashima, Air, 160 mm

DAMPER
FOX, Float X Factory EVOL LV, Air, Trunnion

CRANK ARM
Haibike Components, The Crank ++, Aluminium

BRAKE (FRONT)
Shimano, Deore XT M8120

BRAKE (REAR)
Shimano, Deore XT M8120

TUBE
Presta valve

CLAMPING RING
Internal hexagon, 38.1 mm

REAR DERAILLEUR
Shimano, Deore XT M8100 Shadow Plus

SHIFT LEVER
Shimano, Deore XT M8100, Trigger switch

BOTTOM BRACKET
integrated in the motor

SPROCKET
Shimano, M6100, 10 - 51 teeth

CHAIN
Shimano, SLX M7100

CHAINRING
Haibike Components, Aluminium, 36 teeth

CHAIN GUIDE
Nylon directmount

BRAKE LEVER
Shimano, Deore XT M8100, Aluminium

BRAKE DISC (FRONT)
Shimano, RT-MT800LE, 203 mm

BRAKE DISC (REAR)
Shimano, RT-EM810, 203 mm

TYRE
Maxxis, Minion DHF II, 63-622, 29 x 2.5 inch

WHEEL SET
Mavic, E-Deemax

HANDLEBAR
Haibike Components, TheBar +++, 780 mm

GRIPS
Haibike, MTB grips

STEM
Haibike Components, TheStem +++, 31.8 mm

HEADSET
Acros, BlockLock, Aluminium

SADDLE
fi'zi:k, Terra Aidon X5-160

SEAT POST
Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm

PEDALS
Freeridepedal, Aluminium, with Reflector

PERMITTED TOTAL WEIGHT
120.0 kg

TYRE (REAR, IF DIFFERENT)
Maxxis, Minion DHR II, 66-584, 27.5 x 2.6 inch
